TJ Valve Tray, TJV tray, is a simply and improved valve tray with guiding holes on the valve. It provides better vapor/vapor distribution.



Special features:

(1) The throughput of TJV tray is 10% higher than normal valve trays.

(2) The efficiency of TJV tray is 10% higher than that of normal valve tray.

(3) TJ Valves are not easy fall off or locked.

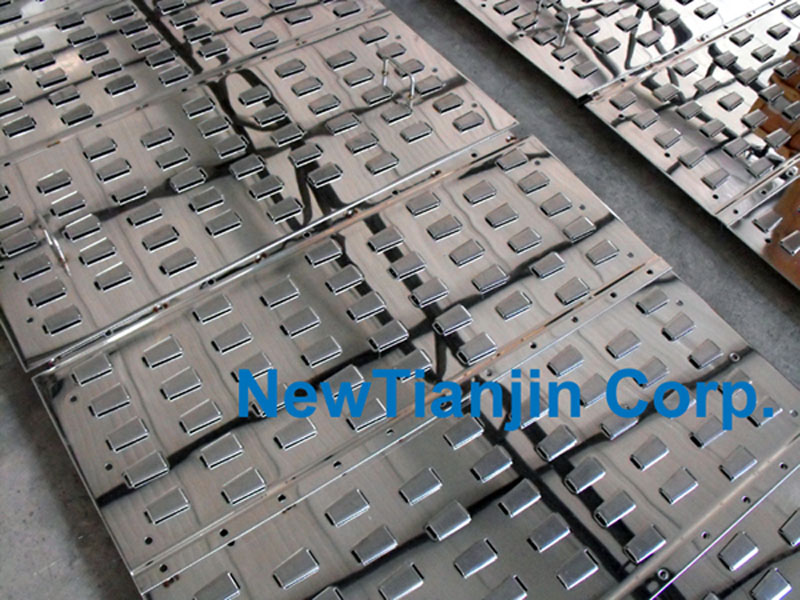

TJ valve tray, top view

TJV tray, top view

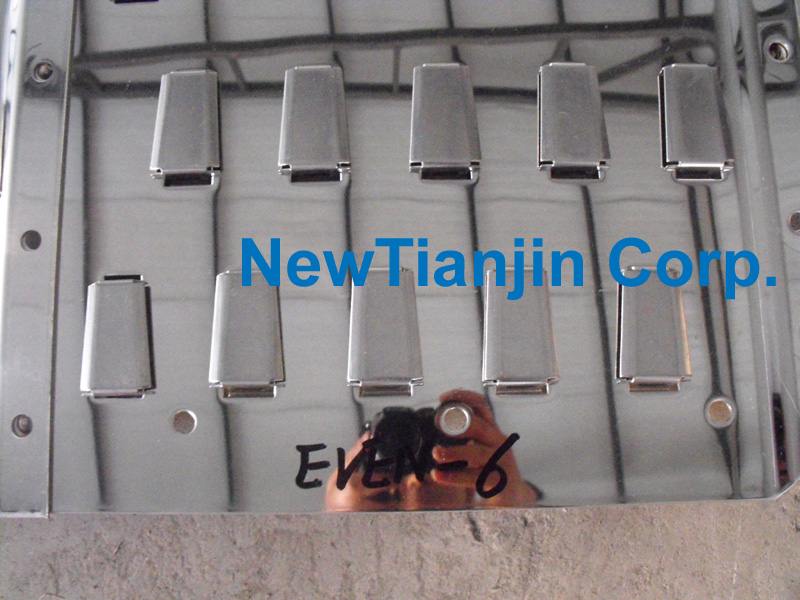

TJ valve tray, bottom view

TJV tray, bottom view

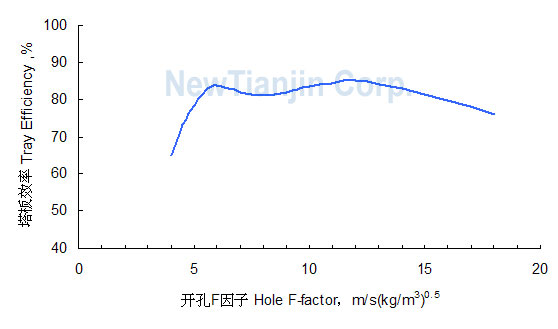

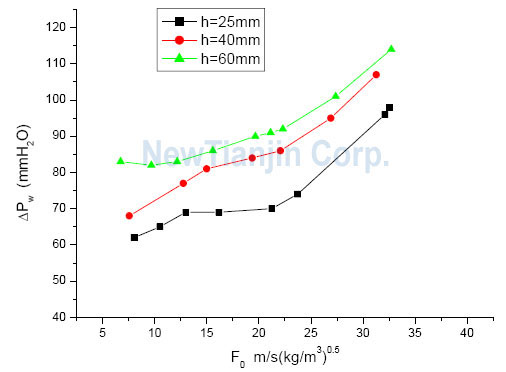

Feature curves of TJV tray.
